詳細說明
KB2VT10-04S,KB2VT12-02S,KB2VT12-03S,KB2VT12-04S,單頭三組外螺接頭,價格

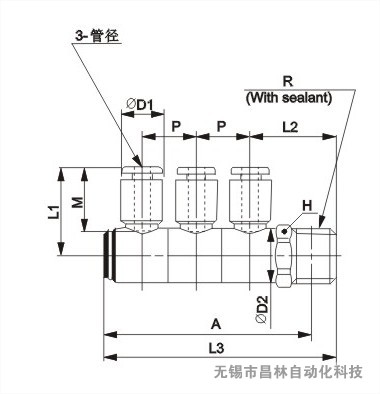

| MODEL | 管徑 | R | H | φD1 | φD2 | L1 | L2 | L3 | A | M | P | 重量 |
| KB2VT04-01S | 4 | 1/8 | 14 | 10.4 | 13.4 | 22 | 18.5 | 54.5 | 50.5 | 16 | 13.4 | 29 |
| KB2VT04-02S | 1/4 | 21.5 | 57.5 | 51.5 | 34 | |||||||
| KB2VT04-03S | 3/8 | 17 | 23.5 | 59.5 | 53.5 | 48 | ||||||
| KB2VT06-01S | 6 | 1/8 | 14 | 12.8 | 13.4 | 24.5 | 18.5 | 54.5 | 50.5 | 17 | 13.4 | 31 |
| KB2VT06-02S | 1/4 | 21.5 | 57.5 | 51.5 | 37 | |||||||
| KB2VT06-03S | 3/8 | 17 | 23.5 | 59.5 | 53.5 | 50 | ||||||
| KB2VT08-01S | 8 | 1/8 | 19 | 15.2 | 17.6 | 28.5 | 21 | 64 | 60 | 18.5 | 15.9 | 71 |
| KB2VT08-02S | 1/4 | 24 | 67 | 61 | 66 | |||||||
| KB2VT08-03S | 3/8 | 25 | 68 | 61.5 | 75 | |||||||
| KB2VT08-04S | 1/2 | 21 | 28.5 | 71.5 | 63.5 | 96 | ||||||
| KB2VT10-02S | 10 | 1/4 | 21 | 18.5 | 20.6 | 34.5 | 26.5 | 77.5 | 71.5 | 21 | 19.2 | 94 |
| KB2VT10-03S | 3/8 | 27.5 | 8.5 | 72 | ||||||||
| KB2VT10-04S | 1/2 | 30.5 | 81.5 | 73.5 | 111 | |||||||
| KB2VT12-02S | 12 | 1/4 | 26 | 20.9 | 25.2 | 34 | 28.5 | 86 | 80 | 22 | 21.6 | 153 |
| KB2VT12-03S | 3/8 | 29.5 | 87 | 80.5 | 142 | |||||||
| KB2VT12-04S | 1/2 | 32.5 | 90 | 82 | 154 |
