KB2VD10-04S,KB2VD12-02S,KB2VD12-03S,KB2VD12-04S,單頭兩組外螺接頭,價格

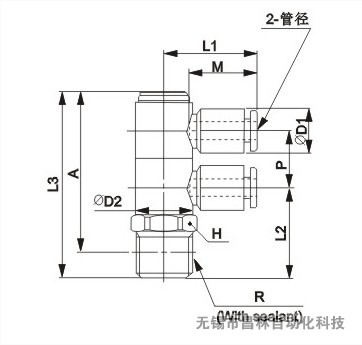

| MODEL | 管徑 | R | H | φD1 | φD2 | L1 | L2 | L3 | A | M | P | 重量 |
| KB2VD04-01S | 4 | 1/8 | 14 | 10.4 | 13.4 | 22 | 18.5 | 41 | 37 | 16 | 13.4 | 23 |
| KB2VD04-02S | 1/4 | 21.5 | 44 | 38 | 29 | |||||||
| KB2VD04-03S | 3/8 | 17 | 23.5 | 46 | 40 | 42 | ||||||
| KB2VD06-01S | 6 | 1/8 | 14 | 12.8 | 13.4 | 24.5 | 18.5 | 41 | 37 | 17 | 13.4 | 24 |
| KB2VD06-02S | 1/4 | 21.5 | 44 | 38 | 30 | |||||||
| KB2VD06-03S | 3/8 | 17 | 23.5 | 46 | 40 | 42 | ||||||
| KB2VD08-01S | 8 | 1/8 | 19 | 15.2 | 17.6 | 28.5 | 21 | 48 | 44 | 18.5 | 15.9 | 53 |
| KB2VD08-02S | 1/4 | 24 | 51 | 45 | 51 | |||||||
| KB2VD08-03S | 3/8 | 25 | 52 | 45.5 | 60 | |||||||
| KB2VD08-04S | 1/2 | 21 | 28.5 | 55.5 | 47.5 | 82 | ||||||
| KB2VD10-02S | 10 | 1/4 | 21 | 18.5 | 20.6 | 34.5 | 26.5 | 58 | 52 | 21 | 19.2 | 71 |
| KB2VD10-03S | 3/8 | 27.5 | 59 | 53 | 74 | |||||||
| KB2VD10-04S | 1/2 | 30.5 | 62 | 54 | 91 | |||||||
| KB2VD12-02S | 12 | 1/4 | 26 | 20.9 | 25.2 | 34 | 28.5 | 64.5 | 58.5 | 22 | 21.6 | 118 |
| KB2VD12-03S | 3/8 | 29.5 | 65.5 | 59 | 113 | |||||||
| KB2VD12-04S | 1/2 | 32.5 | 68.5 | 60 | 125 |
