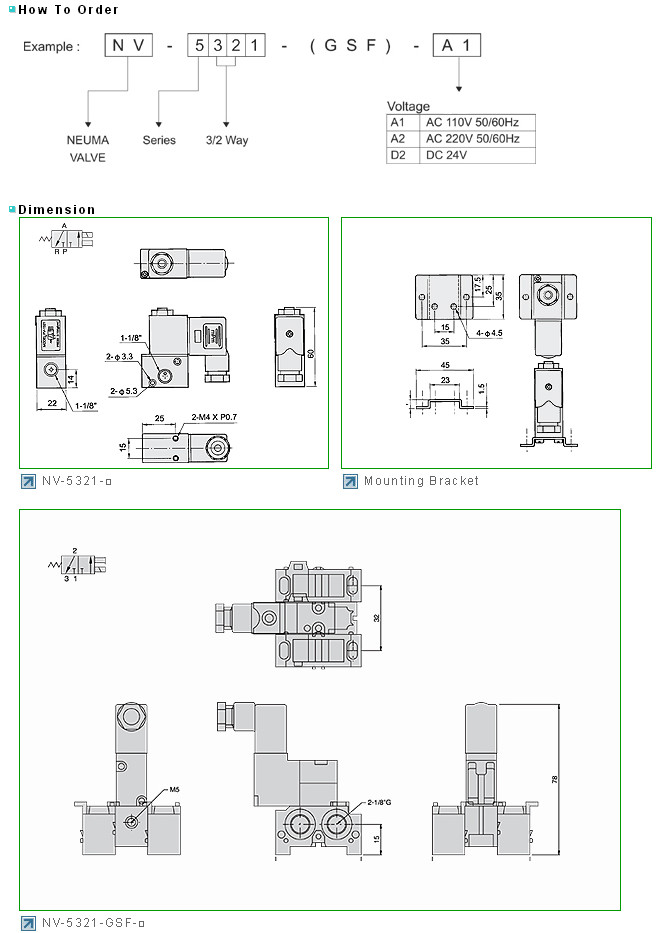

NV-5321-GSF-A1,NV-5321-GSF-A2,NV-5321-GSF-D2,NV-5321-A1,NV-5321-A2,NV-5321-D2,neuma電磁閥
Technical Data
|
Model |
NV-5321- |
NV-5321-GSF- |
|
Position |
3/2 Way |
|
|
Port size |
G 1/8” |
M5 |
|
Effective area |
1.54mm2 (Cv=0.09) |
0.54mm2 (Cv=0.03) |
|
Nominal flow |
86 Nl/min |
30 Nl/min |
|
Fluid |
Compressed Air |
|
|
Pressure range |
0~10 bar (0~144psi) |
|
|
Operating temperature |
5~60°C (41~140°F) |
|
|
Voltage tolerance |
±10% |
|
|
Insertion duration |
100% |
|
|
Class of insulation |
Class F |
|
|
Portection |
IP65 |
|
|
Weight |
0.14 kg |
0.10kg |
