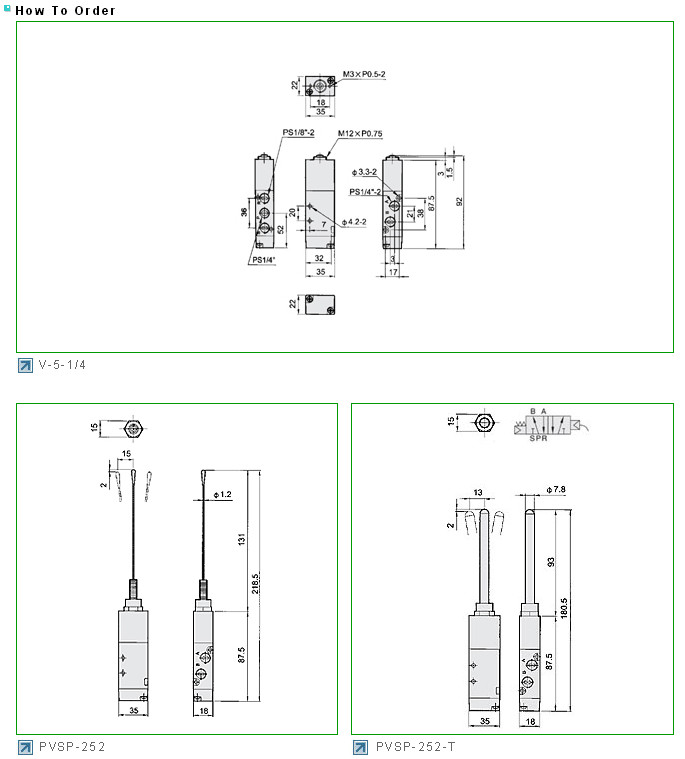

PVSP-252,PVSP-252-T,neuma機械閥
Technical Data.
The pilot control valve have short action distance and small action force, no direction restricted for the contact.
|
Position
|
5/2 Way
|
|
Port size
|
G 1/4”
|
|
Effective area
|
18mm2 (Cv=1.0)
|
|
Nominal flow
|
1000 Nl/min
|
|
Fluid
|
Compressed air
|
|
Pressure range
|
1.5~8bar(22~115psi)
|
|
Operating temperture
|
5~60°C (41~140°F)
|
|
Weight
|
0.18 kg
|
