詳細說明
XMF-Z-20A,XMF-Z-20P,XMF-Z-20,XMF-Z-25,XMF-Z-25P,XMF-Z-35P,脈沖閥
XMF-Z-40S XMF-Z-50S XMF-Z-62S,XMF-Z-76S,XMF-Z-100S,

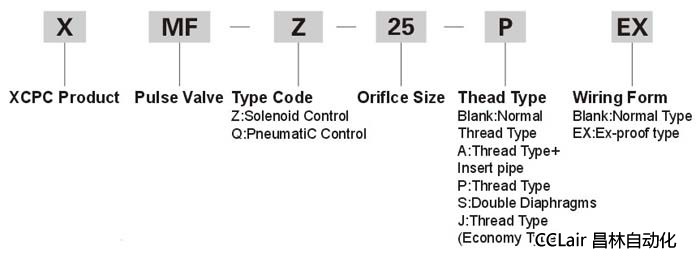

訂購碼
產品規格
|
Model
|
XMF-Z-20A
|
XMF-Z-20P
|
XMF-Z-20
|
XMF-Z-25
|
XMF-Z-25P
|
XMF-Z-35P
|
XMF-Z-40S
|
XMF-Z-50S
|
XMF-Z-62S
|
XMF-Z-76S
|
XMF-Z-100S
|
|
Working Pressure
|
0.3~0.8MPa
|
||||||||||
|
Ambient Temperature
|
-5~55℃
|
||||||||||
|
Relatively Humidity
|
＜85%
|
||||||||||
|
Working Medium
|
Clean Air
|
||||||||||
|
VoItage
|
AC110V/AC220V/DC24V
|
||||||||||
|
Diaphragm Life Cycles
|
Over 1000k Cycles
|
||||||||||
|
Orifice(mm)
|
φ20
|
φ20
|
φ20
|
φ25
|
φ25
|
φ35
|
φ40
|
φ50
|
φ62
|
φ76
|
φ100
|
|
Connection Port
|
G3/4"
|
G3/4"
|
G3/4"
|
G1"
|
G1"
|
G1 1/2"
|
G1 1/2"
|
G2"
|
G1 1/2"
|
G3"
|
φ100
|
外形尺寸
