詳細說明

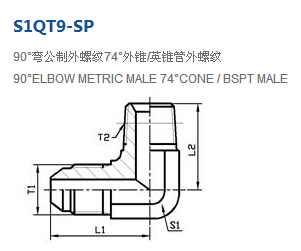

S1QT9-14-04SP,S1QT9-18-06SP,S1QT9-27-08SP,S1QT9-36-16SP,S1QT9-45-20SP,S1QT9-39-16SP,錐面擴口密封接頭
產品技術參數：
| 代號 RAPT NO. | 螺紋 ETHREAD | 尺寸 DIMENSIONS | 工作壓力MPa | |||
|---|---|---|---|---|---|---|
| T1 | T2 | L1 | L2 | S1 | ||
| S1QT9-14-04SP | M14X1.5 | R1/4＂X19 | 28.5 | 28.5 | 14 | 34.5 |
| S1QT9-16-04SP | M16X1.5 | R1/4＂X19 | 30.5 | 30.5 | 16 | 25 |
| S1QT9-18-06SP | M18X1.5 | R3/8＂X19 | 31.5 | 31.5 | 19 | |
| S1QT9-18-08SP | M18X1.5 | R1/2＂X14 | 35.5 | 35.5 | 22 | |
| S1QT9-22-08SP | M22X1.5 | R1/2＂X14 | 35.5 | 35.5 | 22 | 20 |
| S1QT9-27-08SP | M27X1.5 | R1/2＂X14 | 37.5 | 37.5 | 27 | |
| S1QT9-27-12SP | M27X1.5 | R3/4＂X14 | 41.5 | 44 | 27 | |
| S1QT9-30-12SP | M30X2 | R3/4＂X14 | 43 | 43 | 30 | |
| S1QT9-33-12SP | M33X2 | R3/4＂X14 | 45.5 | 45.5 | 33 | |
| S1QT9-36-16SP | M36X2 | R1＂X11 | 47 | 47 | 36 | 16 |
| S1QT9-39-16SP | M39X2 | R1＂X11 | 50 | 50 | 41 | 12.5 |
| S1QT9-45-20SP | M45X2 | R1.1/4＂X11 | 54 | 54 | 46 | 10 |
