詳細說明

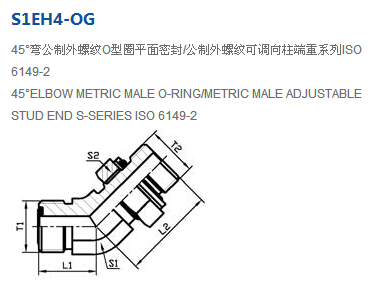

S1EH4-12-10OG,S1EH4-22-18OG,S1EH4-36-33OG,S1EH4-45-42OG,S1EH4-52-48OG,S1EH4-42OG,平面密封接頭
產品技術參數：
| 代號 RAPT NO. | 螺紋 THREAD | 管子外徑 | 尺寸 DIMENSIONS | 工作壓力MPa | ||||
|---|---|---|---|---|---|---|---|---|
| T1 | T2 | TUBE O.D | L1 | L2 | S1 | S2 | ||
| S1EH4-12-10OG | M12X1.5 | M10X1 | 6A | 18 | 25.5 | 12 | 14 | 40 |
| S1EH4-14-12OG | M14X1.5 | M12X1.5 | 6 | 19.5 | 28.5 | 14 | 17 | |
| S1EH4-16-14OG | M16X1.5 | M14X1.5 | 8 | 20 | 31.5 | 17 | 19 | |
| S1EH4-18-16OG | M18X1.5 | M16X1.5 | 10 | 21.5 | 33.5 | 19 | 22 | |
| S1EH4-22-18OG | M22X1.5 | M18X1.5 | 12 | 23 | 38 | 22 | 24 | |
| S1EH4-27-22OG | M27X1.5 | M22X1.5 | 16 | 24.5 | 41 | 27 | 27 | |
| S1EH4-30-27OG | M30X1.5 | M27X2 | 20 | 26 | 46 | 30 | 32 | |
| S1EH4-36-33OG | M36X2 | M33X2 | 25 | 30.5 | 48 | 36 | 41 | 31.5 |
| S1EH4-39-33OG | M39X2 | M33X2 | 28 | 36 | 49 | 41 | 41 | |
| S1EH4-42OG | M42X2 | M42X2 | 30 | 38 | 49 | 41 | 50 | 25 |
| S1EH4-45-42OG | M45X2 | M42X2 | 35 | 39 | 51 | 46 | 50 | |
| S1EH4-52-48OG | M52X2 | M48X2 | 38 | 42 | 54 | 50 | 55 | 20 |
