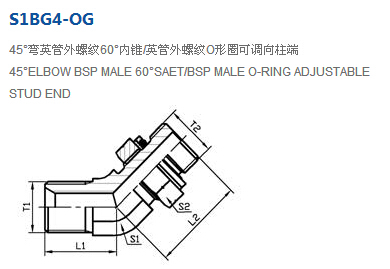

S1BG4-04OG,S1BG4-06OG,S1BG4-08OG,S1BG4-12OG,S1BG4-16OG,S1BG4-20OG,S1BG4-24OG,錐面密封接頭
S1BG4-04-06OG,S1BG4-04-08OG,S1BG4-06-08OG,S1BG4-12-16OG,
產品技術參數：
| 代號 RAPT NO. | 螺紋 THREAD | 尺寸 DIMENSIONS | ||||
|---|---|---|---|---|---|---|
| T1 | T2 | L1 | L2 | S1 | S2 | |
| S1BG4-04OG | G1/4＂X19 | G1/4＂X19 | 22 | 28 | 14 | 19 |
| S1BG4-04-06OG | G1/4＂X19 | G3/8＂X19 | 21 | 30 | 16 | 22 |
| S1BG4-04-08OG | G1/4＂X19 | G1/2＂X14 | 22.5 | 36 | 22 | 27 |
| S1BG4-06OG | G3/8＂X19 | G3/8＂X19 | 21 | 30 | 16 | 22 |
| S1BG4-06-08OG | G3/8＂X19 | G1/2＂X14 | 23.5 | 36 | 22 | 27 |
| S1BG4-08OG | G1/2＂X14 | G1/2＂X14 | 27 | 36 | 22 | 27 |
| S1BG4-12OG | G3/4＂X14 | G3/4＂X14 | 32 | 42 | 27 | 32 |
| S1BG4-12-16OG | G3/4＂X14 | G1＂X11 | 32.5 | 44 | 33 | 41 |
| S1BG4-16OG | G1＂X11 | G1＂X11 | 34 | 44 | 33 | 41 |
| S1BG4-20OG | G1.1/4＂X11 | G1.1/4＂X11 | 38.5 | 47.5 | 41 | 50 |
| S1BG4-24OG | G1.1/2＂X11 | G1.1/2＂X11 | 44 | 51.5 | 48 | 55 |
