型號及含義：
| PATK | -10A | -N |
| (1) | (2) | (3) |
(1)吸盤直徑
| 10A | 25A | (2)真空口方向 | (3)吸盤材料 | ||||
| 10B | 30A | T | 垂直方向 | N | 丁腈橡膠 | ||
| 15A | 30A | S | 硅膠 | ||||
| 15B | 40A | Y | 水平方向 | NE | 導電性丁腈橡膠 | ||
| 20A | 50 | SE | 導電性硅膠 | ||||
| 20B | |||||||

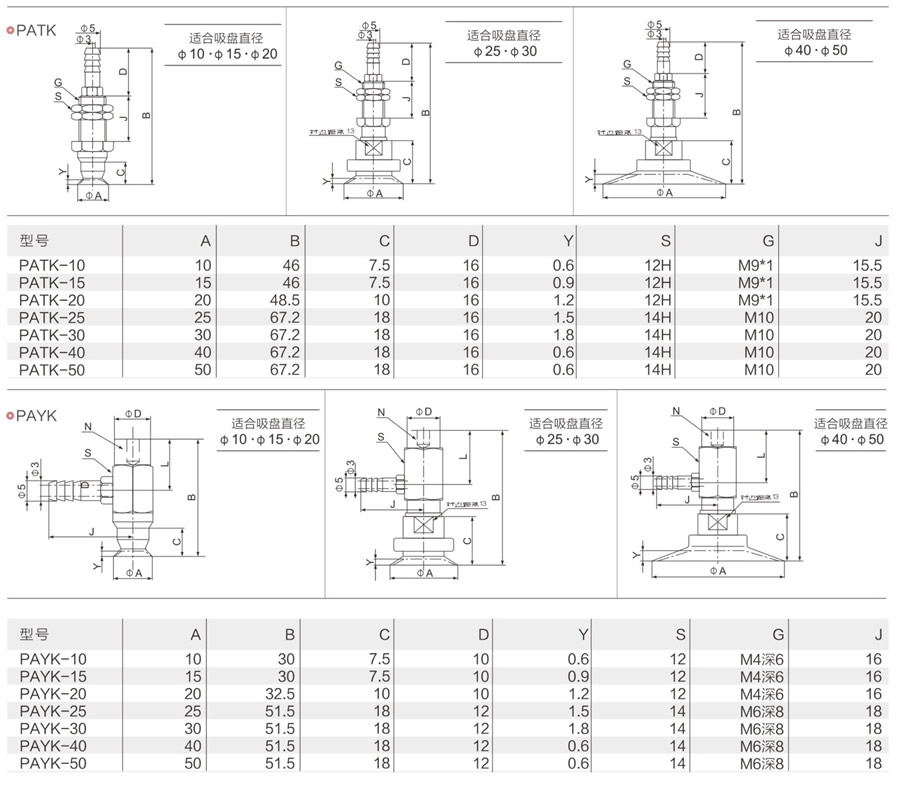

產品外形尺寸：
PATK-10A-N,PATK-10A-S,PATK-10A-NE,PATK-10A-SE,PATK-10B-N,PATK-10B-S,PATK-10B-NE,PATK-10B-SE,PATK-15A-N,PATK-15A-S PATK-15A-NE,PATK-15A-SE,PATK-15B-N,PATK-15B-S,PATK-15B-NE,PATK-15B-SE,PATK-20A-N,PATK-20A-S,PATK-20A-NE,PATK-20A-SE PATK-20B-N,PATK-20B-S,PATK-20B-NE,PATK-20B-SE,PATK-25A-N,PATK-25A-S,PATK-25A-NE,PATK-25A-SE,PATK-25B-N,PATK-25B-S PATK-25B-NE,PATK-25B-SE,PATK-30A-N,PATK-30A-S,PATK-30A-NE,PATK-30A-SE,PATK-30B-N,PATK-30B-S,PATK-30B-NE,PATK-30B-SE PATK-40A-N,PATK-40A-S,PATK-40A-NE,PATK-40A-SE,PATK-50A-N,PATK-50A-S,PATK-50A-NE,PATK-50A-SE,PAYK-10A-N,PAYK-10A-S PAYK-10A-NE,PAYK-10A-SE,PAYK-10B-N,PAYK-10B-S,PAYK-10B-NE,PAYK-10B-SE,PAYK-15A-N,PAYK-15A-S,PAYK-15A-NE,PAYK-15A-SE PAYK-15B-N,PAYK-15B-S,PAYK-15B-NE,PAYK-15B-SE,PAYK-20A-N,PAYK-20A-S,PAYK-20A-NE,PAYK-20A-SE,PAYK-20B-N,PAYK-20B-S PAYK-20B-NE,PAYK-20B-SE,PAYK-25A-N,PAYK-25A-S,PAYK-25A-NE,PAYK-25A-SE,PAYK-25B-N,PAYK-25B-S,PAYK-25B-NE,PAYK-25B-SE PAYK-30A-N,PAYK-30A-S,PAYK-30A-NE,PAYK-30A-SE,PAYK-30B-N,PAYK-30B-S,PAYK-30B-NE,PAYK-30B-SE,PAYK-40A-N,PAYK-40A-S PAYK-40A-NE,PAYK-40A-SE,PAYK-50A-N,PAYK-50A-S,PAYK-50A-NE,PAYK-50A-SE
|
|
|
|
|
|
|
|
