JD284F，JD284F-1A1,頻率信號變送器

JD284F頻率變送器將工業現場頻率信號0-60HZ、00-10KHZ，45-55HZ、0-100HZ等 隔離、轉換為4-20mA、0-10V、0-5V、0-20mA等標準信號，DIN導軌式安裝方式、

JD284F頻率變送器輸入范圍：AC0-100V電壓信號、45-55HZ、0-60HZ、0-10HZ等用戶特定

JD28F頻率變送器輸出范圍：DC4-20mA、0-20mA、0-5V、0-10V、1-5V等用戶需要的標準信號

JD284F頻率信號變送器工作電源：AC/DC110-220V。

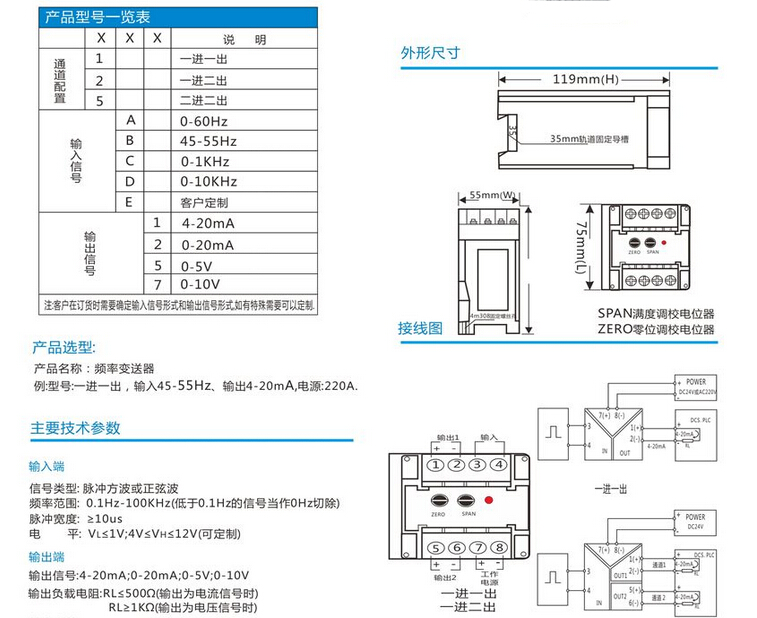

產品型號：

JD284F-1A1,JD284F-1A2,JD284F-1A5,JD284F-1A7,JD284F-1B1,JD284F-1B2,JD284F-1B5,JD284F-1B7,JD284F-1C1,JD284F-1C2,JD284F-1C5,JD284F-1C7,JD284F-1C1,JD284F-1C2,JD284F-1C5,JD284F-1C7,JD284F-1D1,JD284F-1D2,JD284F-1D5,JD284F-1D7,JD284F-1E1,JD284F-1E2,JD284F-1E5,JD284F-1E7,JD284F-2A1,JD284F-2A2,JD284F-2A5,JD284F-2A7,JD284F-2B1,JD284F-2B2,JD284F-2B5,JD284F-2B7,
JD284F-2C1,JD284F-2C2,JD284F-2C5,JD284F-2C7,JD284F-2D1,JD284F-2D2,JD284F-2D5,JD284F-2D7,JD284F-2E1,JD284F-2E2,JD284F-2E5,JD284F-2E7,JD284F-5A1,JD284F-5A2,JD284F-5A5,JD284F-5A7,JD284F-5B1,JD284F-5B2,JD284F-5B5,JD284F-5B7,JD284F-5C1,JD284F-5C2,JD284F-5C5,JD284F-5C7,JD284F-5D1,JD284F-5D2,JD284F-5D5,JD284F-5D7,JD284F-5E1,JD284F-5E2,JD284F-5E5,JD284F-5E7,
