詳細說明
CAS04,CAS06,CAS08,CAS10,CAS12,快插式管接頭
| Model | ∅D | ∅P | ∅K | ∅A | ∅C | L | F | B | E | R | WEIGHT(g) | BOX(EA) |
| CAS04 | 4 | 10 | 9 | 8.8 | 4.25 | 11.25 | 3.55 | 7.8 | 3 | 0.8 | 1 | 100 |
| CAS06 | 6 | 12 | 11.15 | 10.9 | 6.25 | 12.45 | 3.95 | 8.6 | 3.5 | 0.8 | 3 | 100 |
| CAS08 | 8 | 14 | 13.25 | 13 | 8.25 | 13.9 | 4.3 | 9.7 | 4 | 0.8 | 4 | 100 |
| CAS10 | 10 | 16 | 15.5 | 15.2 | 10.25 | 15.15 | 4.85 | 10.45 | 4.5 | 1 | 5 | 100 |
| CAS12 | 12 | 19 | 17.8 | 17.5 | 12.25 | 17.4 | 5 | 12.5 | 5 | 1 | 7 | 100 |

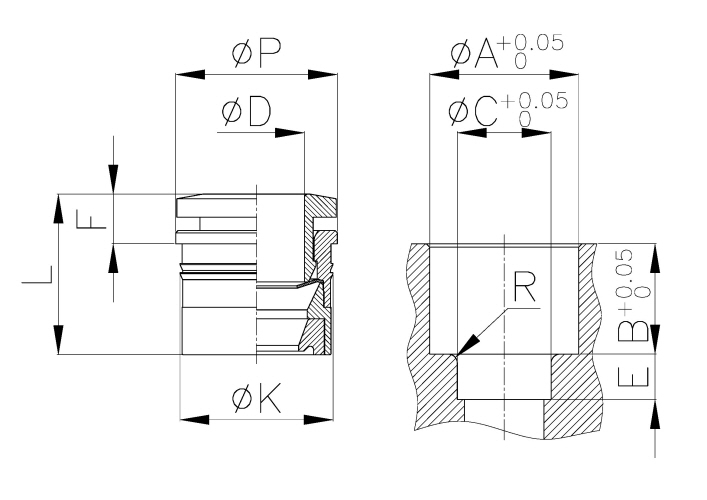

外形尺寸
