詳細說明
PHT04-01(2),PHT06-01(2),PHT08-01(2),PHT10-01(2),PHT12-02(2),快插式管接頭
PHT04-02(2),PHT04-03(2),PHT04-04(2),PHT06-02(2),PHT06-03(2),PHT06-04(2),PHT08-02(2),

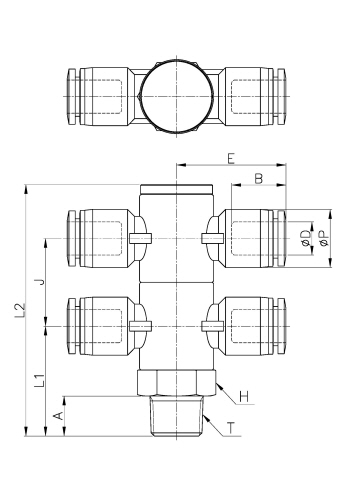

外形尺寸
PHT04-02(2),PHT04-03(2),PHT04-04(2),PHT06-02(2),PHT06-03(2),PHT06-04(2),PHT08-02(2),
PHT08-03(2),PHT08-04(2),PHT10-02(2),PHT10-03(2),PHT10-04(2),PHT12-03(2),PHT12-04(2),
| Model | ￠D | ￠P | T | L1 | L2 | E | A | B | J | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) |
| PHT04-01(2) | 4 | 10.5 | R 1/8 | 22.5 | 51.8 | 23.3 | 8 | 14.8 | 17.9 | 14 | 3.2 | 43 | 25 |
| PHT04-02(2) | 4 | 10.5 | R 1/4 | 27.5 | 62.8 | 25.1 | 10 | 14.8 | 21.9 | 17 | 3.2 | 66 | 25 |
| PHT04-03(2) | 4 | 10.5 | R 3/8 | 29 | 64.8 | 27 | 11 | 14.8 | 21.9 | 21 | 3.2 | 93.2 | 12 |
| PHT04-04(2) | 4 | 10.5 | R 1/2 | 34.1 | 73.4 | 29 | 14 | 14.8 | 23.9 | 24 | 3.2 | 131.2 | 12 |
| PHT06-01(2) | 6 | 12.5 | R 1/8 | 22.5 | 51.8 | 24.1 | 8 | 16.4 | 17.9 | 14 | 4 | 41.8 | 25 |
| PHT06-02(2) | 6 | 12.5 | R 1/4 | 27.5 | 62.8 | 26 | 10 | 16.4 | 21.9 | 17 | 5 | 69 | 20 |
| PHT06-03(2) | 6 | 12.5 | R 3/8 | 29 | 64.8 | 27.9 | 11 | 16.4 | 21.9 | 21 | 5 | 94.8 | 16 |
| PHT06-04(2) | 6 | 12.5 | R 1/2 | 34.1 | 73.4 | 29.3 | 14 | 16.4 | 23.9 | 24 | 5 | 135.8 | 12 |
| PHT08-01(2) | 8 | 14.5 | R 1/8 | 22.5 | 51.8 | 25.6 | 8 | 18.3 | 17.9 | 14 | 5 | 50 | 20 |
| PHT08-02(2) | 8 | 14.5 | R 1/4 | 27.5 | 62.8 | 27.4 | 10 | 18.3 | 21.9 | 17 | 7 | 73 | 20 |
| PHT08-03(2) | 8 | 14.5 | R 3/8 | 29 | 64.8 | 29.3 | 11 | 18.3 | 21.9 | 21 | 7 | 96.8 | 12 |
| PHT08-04(2) | 8 | 14.5 | R 1/2 | 34.1 | 73.4 | 30.7 | 14 | 18.3 | 23.9 | 24 | 7 | 138.8 | 12 |
| PHT10-01(2) | 10 | 17.5 | R 1/8 | 22.5 | 51.8 | 28.1 | 8 | 20.2 | 17.9 | 14 | 5 | 60 | 15 |
| PHT10-02(2) | 10 | 17.5 | R 1/4 | 27.5 | 62.8 | 29.8 | 10 | 20.2 | 21.9 | 17 | 8 | 69.8 | 12 |
| PHT10-03(2) | 10 | 17.5 | R 3/8 | 29 | 64.8 | 31.9 | 11 | 20.2 | 21.9 | 21 | 8 | 118 | 9 |
| PHT10-04(2) | 10 | 17.5 | R 1/2 | 34.1 | 73.4 | 33.7 | 14 | 20.2 | 23.9 | 24 | 8 | 144.8 | 9 |
| PHT12-02(2) | 12 | 20.5 | R 1/4 | 27.5 | 62.8 | 33 | 10 | 22.9 | 21.9 | 17 | 8 | 99 | 9 |
| PHT12-03(2) | 12 | 20.5 | R 3/8 | 29 | 64.8 | 35.1 | 11 | 22.9 | 21.9 | 21 | 8 | 130 | 9 |
| PHT12-04(2) | 12 | 20.5 | R 1/2 | 34.1 | 73.4 | 37.4 | 14 | 22.9 | 23.9 | 24 | 8 | 174 | 8 |
