詳細說明
ST01,ST02,ST03,ST04,ST06,ST08,STM02,消聲器
| Model | ￠P | T | L | A | H1(Hex) | H2(Hex) | WEIGHT(g) | BOX(EA) |
| ST01 | 10.5 | R 1/8 | 35.3 | 8 | - | 6 | 1.9 | 100 |
| ST02 | 22.2 | R 1/4 | 63 | 9.5 | 18 | 12 | 14.1 | 40 |
| ST03 | 25 | R 3/8 | 83.2 | 13.7 | 21 | 15 | 22.2 | 20 |
| ST04 | 30 | R 1/2 | 88 | 15.5 | 26 | 19 | 31.1 | 15 |
| ST06 | 45 | R 3/4 | 101 | 16.8 | 33 | - | 63.7 | 6 |
| ST08 | 45 | R 1 | 103.5 | 16.8 | 33 | - | 65.4 | 6 |
| STM02 | 15 | R 1/4 | 45 | 7.6 | - | - | 4.4 | 40 |

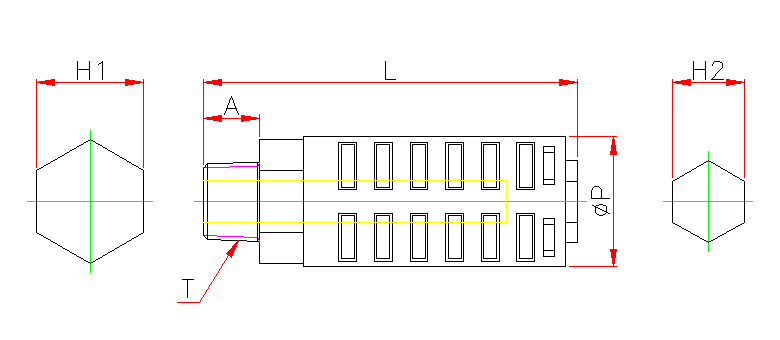

外形尺寸
