點擊圖片查看原圖SMQ611F-16,SMQ611F-25,SMQ611F-40,SMQ621F-25,SMQ621F-40,SMQ621F-64,SMQ661F-16,氣動三片式焊接球閥
一、產品[氣動三片式球閥]的詳細資料：
產品型號：SMQ661F
產品名稱：氣動三片式球閥
產品特點：氣動三片式球閥,氣動球閥,三片式球閥，公司生產的氣動球閥,是在引進國外先進技術的基礎上進行特殊設計，精心制造的產品。采用智能控制與定位，與電氣閥門定位器配套，輸入4-20mADC信號及0.4~0.7MPa氣源即可控制運轉，實現對壓力、流量、溫度、液位等參數的調節。它是以壓縮空氣為動力，閥桿帶動閥芯在閥體內轉動90°可以實現全開—全閉的動作。該產品按其密封性能分為金屬密封與軟密封。具有結構緊湊、體積精小、運行可靠、密封性好、維修容易、安裝方便、適應性強等優點。特別適合于介質是粘稠、含顆粒、纖維性質的場合?？蓮V泛應用于石油、化工、教學設備、輕工、高壓設備、制藥、造紙等工業自動控制系統中，作遠距離集中控制或就地控制。

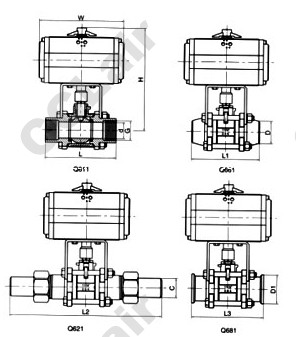

二、氣動三片式球閥主要外形和連接尺寸單位：
|
SMQ611F-16,25,40,64 |
||||||
|
通徑DN |
d |
G |
L |
H |
W |
|
|
mm |
In |
|||||
|
8 |
1/4″ |
8 |
G1/4″ |
65 |
140 |
104 |
|
10 |
3/8″ |
10 |
G3/8 |
65 |
140 |
104 |
|
15 |
1/2″ |
15 |
G1/2 |
72 |
150 |
140 |
|
20 |
3/4 |
18 |
G3/4″ |
85 |
155 |
140 |
|
25 |
1″ |
24 |
G1″ |
91 |
165 |
140 |
|
32 |
1 1/2″ |
30 |
G1 1/4″ |
110 |
180 |
164 |
|
40 |
1 1/2″ |
38 |
G1 1/2″ |
122 |
190 |
164 |
|
50 |
2″ |
48 |
G2″ |
145 |
210 |
190 |
三、氣動三片式球閥主要外形和連接尺寸單位：
|
SMQ621F-16,25,40,64 |
||||||
|
通徑DN |
d |
G |
L2 |
H |
W |
|
|
mm |
In |
|||||
|
8 |
1/4″ |
8 |
14 |
120 |
140 |
104 |
|
10 |
3/8″ |
10 |
18 |
130 |
140 |
104 |
|
15 |
1/2″ |
15 |
22 |
140 |
150 |
140 |
|
20 |
3/4 |
18 |
28 |
160 |
155 |
140 |
|
25 |
1″ |
24 |
34 |
180 |
165 |
140 |
|
32 |
1 1/2″ |
30 |
42 |
200 |
180 |
164 |
|
40 |
1 1/2″ |
38 |
48 |
218 |
190 |
164 |
|
50 |
2″ |
48 |
60 |
235 |
210 |
190 |
四、氣動三片式球閥主要外形和連接尺寸單位：
|
SMQ661F-16,25,40,64 |
||||||
|
通徑DN |
d |
G |
L1 |
H |
W |
|
|
mm |
In |
|||||
|
8 |
1/4″ |
8 |
14.3 |
65 |
140 |
104 |
|
10 |
3/8″ |
10 |
18 |
65 |
140 |
104 |
|
15 |
1/2″ |
15 |
22 |
72 |
150 |
140 |
|
20 |
3/4 |
18 |
28 |
85 |
155 |
140 |
|
25 |
1″ |
24 |
34.5 |
91 |
165 |
140 |
|
32 |
1 1/2″ |
30 |
43.5 |
110 |
180 |
164 |
|
40 |
1 1/2″ |
38 |
49.5 |
122 |
190 |
164 |
|
50 |
2″ |
48 |
62 |
145 |
210 |
190 |
五、氣動三片式球閥主要外形和連接尺寸單位：
|
SMQ681F-16 |
||||||
|
通徑DN |
d |
G |
L3 |
H |
W |
|
|
mm |
In |
|||||
|
15 |
1/2″ |
15 |
34 |
108 |
150 |
140 |
|
20 |
3/4 |
18 |
50.5 |
118 |
155 |
140 |
|
25 |
1″ |
24 |
50.5 |
127 |
165 |
140 |
|
32 |
1 1/2″ |
30 |
50.5 |
146 |
180 |
164 |
|
40 |
1 1/2″ |
38 |
50.5 |
159 |
190 |
164 |
|
50 |
2″ |
48 |
64 |
191 |
210 |
190 |
