點擊圖片查看原圖SMQ671F-16-DN10,SMQ671F-16-DN15,SMQ671F-16P-DN20,SMQ671F-16P-DN25,氣動對夾球閥
一、產品[氣動超短型球閥]的詳細資料：
產品型號：SMQ671F
產品名稱：氣動超短型球閥
產品特點：氣動超短型球閥,氣動球閥,超短型球閥

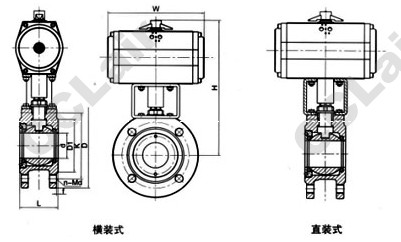

二、氣動超短型球閥主要外形和連接尺寸：
|
SMQ671F-16 |
||||||||||
|
通徑DN |
d |
L |
D |
K |
D1 |
n-Md |
f |
H |
W |
|
|
mm |
in |
|||||||||
|
10 |
3/8″ |
10 |
32 |
85 |
60 |
38 |
4-M12 |
2 |
165 |
104 |
|
15 |
1/2″ |
14 |
35 |
90 |
65 |
46 |
4-M12 |
2 |
180 |
140 |
|
20 |
3/4″ |
19 |
38 |
100 |
75 |
56 |
4-M12 |
2 |
185 |
140 |
|
25 |
1″ |
24 |
42 |
110 |
85 |
65 |
4-M12 |
2 |
190 |
140 |
|
32 |
1 1/4″ |
29 |
50 |
130 |
100 |
76 |
4-M16 |
3 |
205 |
164 |
|
40 |
1 1/2″ |
38 |
60 |
145 |
110 |
84 |
4-M16 |
3 |
220 |
164 |
|
50 |
2″ |
48 |
70 |
160 |
125 |
99 |
4-M16 |
3 |
255 |
190 |
|
65 |
2 1/2″ |
64 |
95 |
180 |
145 |
118 |
4-M16 |
3 |
280 |
210 |
|
80 |
3″ |
76 |
118 |
195 |
160 |
132 |
8-M16 |
3 |
330 |
247 |
|
100 |
4″ |
95 |
140 |
215 |
180 |
156 |
8-M16 |
3 |
370 |
276 |
|
125 |
5″ |
118 |
195 |
245 |
210 |
184 |
8-M16 |
3 |
460 |
348 |
|
150 |
6″ |
150 |
260 |
280 |
240 |
211 |
8-M20 |
3 |
540 |
378 |
|
200 |
8″ |
200 |
350 |
335 |
295 |
266 |
12-M20 |
3 |
670 |
432 |
三、氣動超短型球閥主要外形和連接尺寸：
|
SMQ671F-16P |
||||||||||
|
通徑DN |
d |
L |
D |
K |
D1 |
n-Md |
f |
H |
W |
|
|
mm |
in |
|||||||||
|
10 |
3/8″ |
10 |
32 |
85 |
60 |
38 |
4-M12 |
2 |
165 |
104 |
|
15 |
1/2″ |
14 |
35 |
90 |
65 |
46 |
4-M12 |
2 |
180 |
140 |
|
20 |
3/4″ |
19 |
38 |
100 |
75 |
56 |
4-M12 |
2 |
185 |
140 |
|
25 |
1″ |
24 |
42 |
110 |
85 |
65 |
4-M12 |
2 |
190 |
140 |
|
32 |
1 1/4″ |
29 |
50 |
130 |
100 |
76 |
4-M16 |
3 |
205 |
164 |
|
40 |
1 1/2″ |
38 |
60 |
145 |
110 |
84 |
4-M16 |
3 |
220 |
164 |
|
50 |
2″ |
48 |
70 |
160 |
125 |
99 |
4-M16 |
3 |
255 |
190 |
|
65 |
2 1/2″ |
64 |
95 |
180 |
145 |
118 |
8-M16 |
3 |
280 |
210 |
|
80 |
3″ |
76 |
118 |
195 |
160 |
132 |
8-M16 |
3 |
330 |
247 |
|
100 |
4″ |
95 |
140 |
215 |
180 |
156 |
8-M20 |
3 |
370 |
276 |
|
125 |
5″ |
118 |
195 |
245 |
210 |
184 |
8-M24 |
3 |
460 |
348 |
|
150 |
6″ |
150 |
260 |
280 |
240 |
211 |
8-M24 |
3 |
540 |
378 |
|
200 |
8″ |
200 |
350 |
335 |
295 |
274 |
8-M24 |
3 |
670 |
432 |
結構長度：Q/OLF002-88
法蘭標準：JB亦可按GB9113、ANSI B16.5 \JIS B2212
