您當前的位置：首頁 » 產品&解決方案 » ZRAVE1-10,ZRAVE2-10/20,ZRAVE3-30/20/10,ZRAVE4-10/30/10,ZRAVE5-10/40/10/40/10,油氣分配混合器
ZRAVE1-10,ZRAVE2-10/20,ZRAVE3-30/20/10,ZRAVE4-10/30/10,ZRAVE5-10/40/10/40/10,油氣分配混合器
點擊圖片查看原圖
產品： 瀏覽次數：467ZRAVE1-10,ZRAVE2-10/20,ZRAVE3-30/20/10,ZRAVE4-10/30/10,ZRAVE5-10/40/10/40/10,油氣分配混合器
型號： ZRAVE1-10,ZRAVE2-10/20,ZRAVE3-30/20/10,ZRAVE4-10/30/10,ZRAVE5-10/40/10/40/10
單價： 面議
最小起訂量：
供貨總量：
發貨期限： 自買家付款之日起 3 天內發貨
有效期至： 長期有效
最后更新： 2015-04-26 19:47

詢價
詳細信息
 ZRAVE1-10,ZRAVE2-10/20,ZRAVE3-30/20/10,ZRAVE4-10/30/10,ZRAVE5-10/40/10/40/10,油氣分配混合器
一、結構特點及應用范圍
　　ZRAVE型油氣分配混合器，它是一種由鋁合金材料制造的容積定量式結構的油氣分配混合器，設有一個進油口、一個進氣口、1～8個油氣出口。主要適用于單線卸壓式油氣潤滑系統中。
二、技術參數
型 號
進油壓力
進氣壓力
油氣出口數
L
H
ZRAVE1-*
＞2MPa
0.4～0.6MPa
1
44
30
ZRAVE2-*
2
64
50
ZRAVE3-*
3
84
70
ZRAVE4-*
4
104
90
ZRAVE5-*
5
124
110
ZRAVE6-*
6
144
130
ZRAVE7-*
7
164
150
ZRAVE8-*
8
184
170
給油系列號＊
排 量
10
0.1ml/cycle
20
0.2ml/cycle
30
0.3ml/cycle
40
0.4ml/cycle
　　適用過濾精度25m，粘度≤760cSt/40℃的潤滑油；環境溫度0℃～40℃。

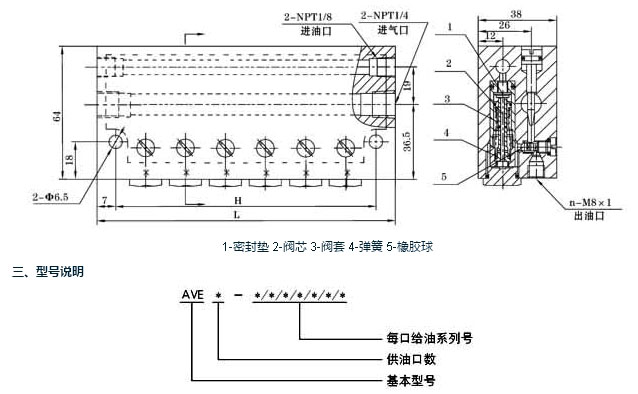

四、動作說明
從進油口處進入的壓力油，在油壓的作用下件1下移，緊貼在件2上端面封住了通油通道，同時打開了進油通道向件3上腔充油，件3在油壓作用下克服件4彈簧力向下移動，則件3下腔的油頂開件5進入混合腔，在壓縮空氣的作用下經混合后的油氣從油氣出口排出。供油主管卸荷后，件1上部油壓低并且件3在件4的作用下向上回位，件3上腔充入的油經已打開的件2上端面流道孔進入件3下腔儲存，為下一循環供油作好準備。各口的供氣量可通過節流螺絲的開口大小進行調節。
五、使用要領
1、必須在規定的環境下使用規定范圍的介質。
2、壓縮空氣接口必須與本油氣系統專屬的壓縮空氣網絡管路連接，嚴禁與其它來歷不明的氣源管路連接，以免發生意外。
3、油氣分配混合器的安裝位置優先考慮安裝在工況條件好，溫差彎化小，無腐蝕性介質影響的部位，決不允許安裝在長時間受高溫輻射烘烤的場合使用。
