首頁 > 產品＆解決方案 > S1ST9-02SP,S1ST9-04SP,S1ST9-06SP,S1ST9-08SP,S1ST9-12SP,S1ST9-20SP,S1ST9-24SP,S1ST9-32SP,錐面密封接頭
S1ST9-02SP,S1ST9-04SP,S1ST9-06SP,S1ST9-08SP,S1ST9-12SP,S1ST9-20SP,S1ST9-24SP,S1ST9-32SP,錐面密封接頭
 點擊圖片查看原圖 |
|
| 產品： |
瀏覽次數：380S1ST9-02SP,S1ST9-04SP,S1ST9-06SP,S1ST9-08SP,S1ST9-12SP,S1ST9-20SP,S1ST9-24SP,S1ST9-32SP,錐面密封接頭 |
| 型號： |
S1ST9-02SP,S1ST9-04SP,S1ST9-06SP,S1ST9-08SP,S1ST9-12SP,S1ST9-20SP,S1ST9-24SP,S1ST9-32SP |
| 單價： |
面議 |
| 最小起訂量： |
|
| 供貨總量： |
|
| 發貨期限： |
自買家付款之日起 3 天內發貨 |
| 有效期至： |
長期有效 |
| 最后更新： |
2015-12-08 21:05 |
| |
 |
|

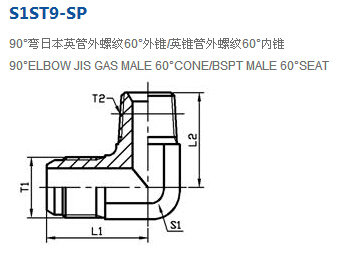

S1ST9-02SP,S1ST9-04SP,S1ST9-06SP,S1ST9-08SP,S1ST9-12SP,S1ST9-20SP,S1ST9-24SP,S1ST9-32SP,錐面密封接頭
產品技術參數：
| 代號 RAPT NO. |
螺紋 THREAD |
尺寸 DIMENSIONS |
| T1 |
T2 |
L1 |
L2 |
S1 |
| S1ST9-02SP |
G1/8＂X28 |
R1/8＂X28 |
21.8 |
21 |
11 |
| S1ST9-04SP |
G1/4＂X19 |
R1/4＂X19 |
25 |
26 |
14 |
| S1ST9-06SP |
G3/8＂X19 |
R3/8＂X19 |
28 |
30 |
16 |
| S1ST9-08SP |
G1/2＂X14 |
R1/2＂X14 |
32 |
36 |
22 |
| S1ST9-12SP |
G3/4＂X14 |
R3/4＂X14 |
37 |
43 |
27 |
| S1ST9-16SP |
G1＂X11 |
R1＂X11 |
42 |
50 |
33 |
| S1ST9-20SP |
G1.1/4＂X11 |
R1.1/4＂X11 |
50 |
58 |
41 |
| S1ST9-24SP |
G1.1/2＂X11 |
R1.1/2＂X11 |
52 |
63 |
48 |
| S1ST9-32SP |
G2＂X11 |
R2＂X11 |
63 |
75 |
63 |
S1ST9-16SP,
|
